Auto Pen for 3 mL Cartridges

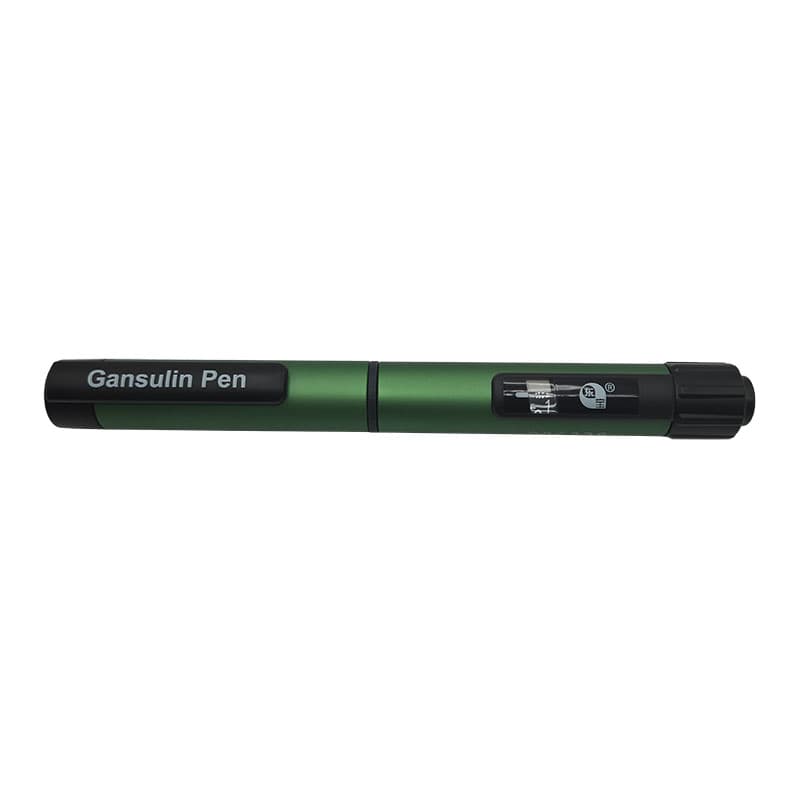

Gansulin Pen, assembled with cap

Auto Pen for 3 mL Cartridges

$64.99

The Auto Pen is the Gansulin Pen, made by Tonghua Dongbao on the Ypsomed ServoPen platform, for research use. It takes 3 mL (300-unit) cartridges and dials 1 to 60 units in single-unit clicks; press the button and a spring delivers the dose. Metal body, dose window, dial-back correction and a zippered carry case; cartridges and pen needles are sold separately.

Coming soon
Email me when it’s available
  • Ships fast from the US
  • Secure checkout

What this pen is

The Auto Pen is the Gansulin Pen, a reusable spring-driven pen for 3 mL cartridges, sold for research use. Tonghua Dongbao Pharmaceutical of Tonghua, Jilin, China makes it on the ServoPen platform from Ypsomed of Switzerland. Ypsomed lists it as the first product launched on that platform, in 2010. The name Gansulin Pen (甘舒霖笔) is printed on the cap and the case.

It takes a 3 mL (300-unit) cartridge and dials from 1 to 60 units, one unit per click. You twist the knob to set the dose and press the button. A spring pushes the dose through the needle on its own.

This is the green push-button model. The maker’s later Sulin Pen (舒霖笔) is a dial-and-dose pen and a different device.

What it does

  • Clicks once for every unit as you turn the knob. You can feel each step.
  • Dials back if you go past the number you want. Nothing is wasted.
  • Stops at what is left in the cartridge. The knob will not turn past the remaining amount.
  • Delivers the dose when you press the button. You hear a click when it finishes and the dial returns to zero.
  • Shows the set dose in a window. If delivery is interrupted, the window shows how much is left to deliver.

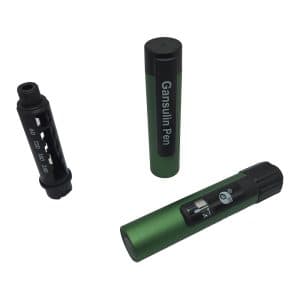

  • Changes cartridges with a twist-and-pull bayonet holder. The lead screw slides back when you load a fresh cartridge.
  • Metal outer housing in green, with a black cap, dial knob and cartridge holder.
  • Dose accuracy stated by the manufacturer in accordance with ISO 11608-1.

Specifications

  • Manufacturer: Tonghua Dongbao Pharmaceutical Co., Ltd., Tonghua, Jilin, China
  • Platform: Ypsomed ServoPen (Switzerland)
  • Type: reusable, spring-driven pen with push-button delivery
  • Cartridge: 3 mL / 300 units
  • Cartridge fit: the manufacturer specifies its own 3 mL cartridges; the ServoPen platform is specified for standard ISO 11608-3 3 mL cartridges
  • Dose range: 1 to 60 units per dose
  • Dose step: 1 unit, with a click you can hear and feel
  • Dose correction: dial back without expelling liquid
  • Needles: screw-on pen needles
  • Needle fit: the manufacturer names its own Dongbao pen needles (its site lists 32G x 4 mm and 31G x 6 mm); the ServoPen platform is specified for standard ISO 11608-2 pen needles
  • Hold time after pressing the button: at least 6 seconds
  • Storage: above freezing and below 30°C, out of direct sunlight
  • Latex: the manufacturer states that components may contain traces of latex
  • Country of origin: China

In the box

  • 1 pen

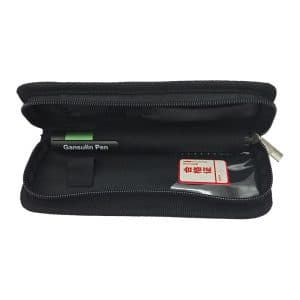

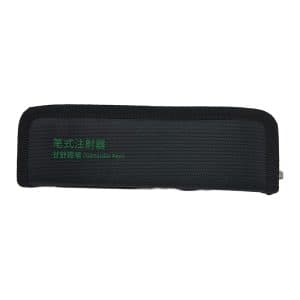

  • 1 zippered nylon carry case
  • Certificate of conformity card (合格证)

Cartridges and pen needles are sold separately.

How to use it

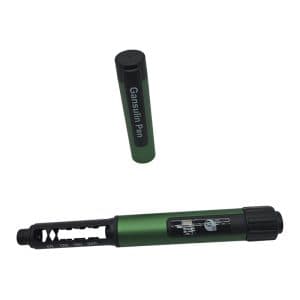

  1. Load a cartridge. Pull off the pen cap. Twist the cartridge holder and pull it away from the body until it clicks free. Take out any empty cartridge and insert a fresh 3 mL cartridge. Push the cartridge and holder against the pin head so the screw slides back into the body. Twist the holder back on until it clicks.
  2. Attach a needle. Peel the seal from a new pen needle and fit it onto the holder tip until it is seated. Remove the outer needle cap. Remove the inner cap when you are ready to use the pen.
  3. Prime the pen. Dial 1 or 2 units. Hold the pen with the needle pointing up and tap the cartridge holder so any air rises. Press and hold the button until the dial returns to zero and you hear the click. A drop should appear at the needle tip. If it does not, repeat up to four more times, then try a new needle. Prime every time you change a cartridge or a needle.
  4. Set the dose. Turn the knob clockwise and read the number in the window. Turn it back the other way to lower the dose. If the knob stops, the cartridge has less left than you are dialing. Do not force it.
  5. Deliver the dose. With the needle in place, press the button down until you hear the click, and check that the dial is back at zero. Keep the needle in place for at least 6 seconds before you withdraw it. A drop or two at the needle tip afterward is normal and does not change the delivered dose.
  6. Remove the needle. Put the outer cap back over the needle, unscrew the cap and needle together, and dispose of the needle. Use each needle once. Put the pen cap back on.

Care and storage

  • Wipe the pen with a soft, damp cloth. No alcohol or other cleaning agents, and never put the pen in water.
  • Store between freezing and 30°C, away from direct sunlight and extreme heat or cold.
  • If the room is warmer than 30°C, the manufacturer says a loaded pen can be kept in the refrigerator.
  • Keep the pen in its case when not in use. Remove the needle after every use and put the cap back on.
  • Do not try to repair the pen yourself. Contact us if it is damaged.
  • Use each needle once. Do not share cartridges or needles.

For research use only. Not for human or animal therapeutic, clinical, or diagnostic use. Not FDA-approved.
